> 상품 > 군 신호 방해기 > Large drone defense system integrated with radar, optic-electric camera, radio frequency devices

Large drone defense system integrated with radar, optic-electric camera, radio frequency devices

제품 세부 정보

Place of Origin: China

브랜드 이름: Zhongdeng

Model Number: Skyweb No1

지불 및 배송 조건

가장 좋은 가격 을 구하라
제품 세부 정보
강조하다:

large military drone defense system

,

drone defense system with radar

,

military signal jammer with camera

Spectrum Detector:
3-8km
Dual Spectrum Camera: Visible light:
detection distance is ≥ 5km
Dual Spectrum Camera: Thermal image:
detection range ≥2km,
Radar:
5km
GPS spoofing distance::
3km
Jamming distance:
3km
Spectrum Detector:
3-8km
Dual Spectrum Camera: Visible light:
detection distance is ≥ 5km
Dual Spectrum Camera: Thermal image:
detection range ≥2km,
Radar:
5km
GPS spoofing distance::
3km
Jamming distance:
3km
제품 설명
Large Drone Defense System
Integrated with Radar, Optic-Electric Camera, and Radio Frequency Devices
Key Attributes
Attribute Value
Spectrum Detector 3-8km
Dual Spectrum Camera: Visible light Detection distance ≥ 5km
Dual Spectrum Camera: Thermal image Detection range ≥ 2km
Radar 5km
GPS spoofing distance 3km
Jamming distance 3km
System Description

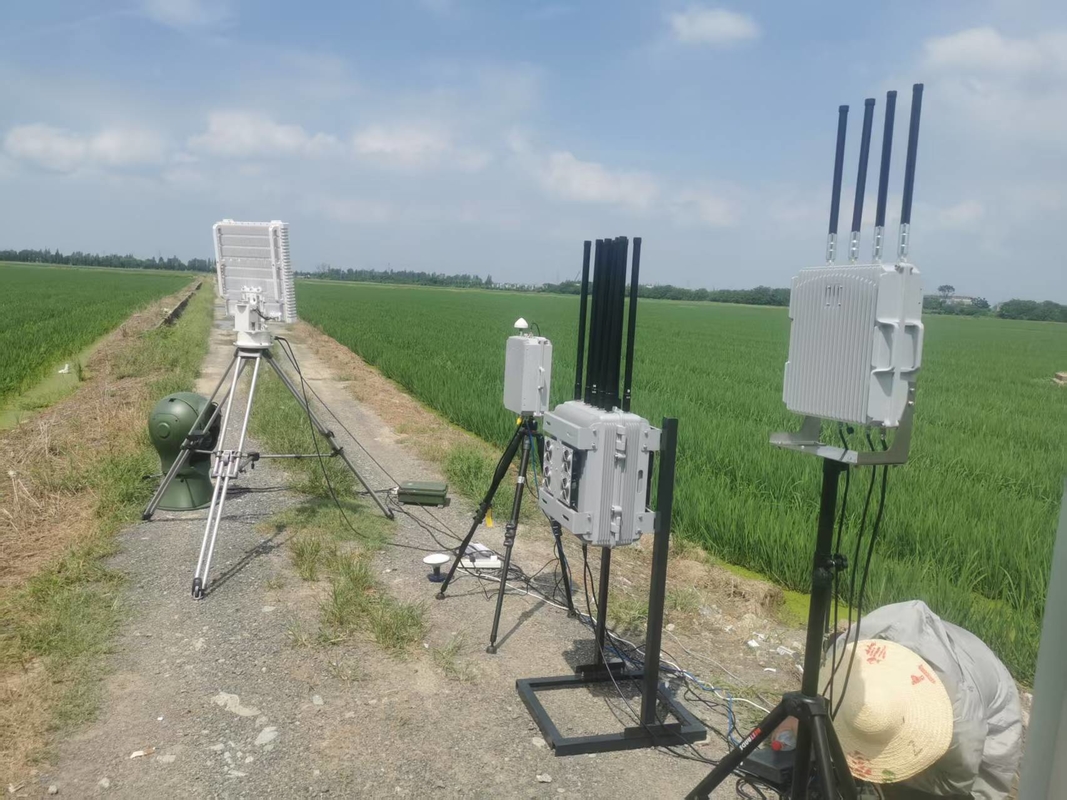

"Skyweb No.1 drone defense system" consists of low altitude surveillance radar, passive radio detector, dual spectrum cameras, jammer, GPS spoofing device, and other components.

  • Scans low-altitude flying targets including drones and birds 24/7 through low-altitude surveillance radar
  • Uses passive radio detector to detect UAV remote control and telemetry signals
  • Identifies serial number, model, position, speed, height, and track information of DJI drones
  • Complies with GB42590,2023, ASD-STAN prEN4709-002 and ASTM F3411 EU standards
  • Utilizes edge computing to process radar coordinates and guide dual spectrum cameras
  • Operators can manually verify targets through video monitoring
  • Guides counter equipment (jammer or GPS spoofing device) to neutralize threats
Technical Specifications
Radar: 5km detection range
Spectrum Detector: 3-8 km range
Dual Spectrum Camera - Visible Light:
  • Detection distance ≥ 5km
  • Identification distance ≥ 3km
Dual Spectrum Camera - Thermal Image:
  • Detection range ≥ 2km
  • Identification distance ≥ 1km
GPS spoofing distance: 3km
Jamming distance: 3km (omnidirectional)
